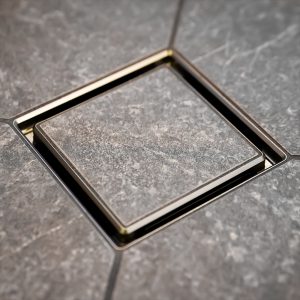

FloFX Tile-In Grate

TILE PRO RATING: GoodBetterBest

4″ x 4″ Seamless Invisible Shower Drain Cover

$60.00

Item No.: TG-PW

attribute_finish: Powdercoat White

Item No.: TG-BN

attribute_finish: Brushed Nickel

Item No.: TG-GG

attribute_finish: Graphite Gray

Item No.: TG-MB

attribute_finish: Matte Black

Item No.: TG-SB

attribute_finish: Satin Bronze

Item No.: TG-SG

attribute_finish: Satin Gold

Achieve the ultimate minimalist aesthetic in your custom shower with the FloFX Tile-In Grate. Designed to make the drain essentially vanish, this 4″ x 4″ system allows you to insert a precisely cut piece of your shower floor tile directly into the grate tray. The result is an uninterrupted, seamless tile pattern where water effortlessly drains through a discreet perimeter slot.

Engineered with the same uncompromising quality as the entire FloFX line, the Tile-In Grate is CNC-milled from solid plate 6061-T6 aircraft-grade aluminum. It features a unique, screw-less drop-in design that rests perfectly inside the carrier. This grate provides a hyper-clean, modern finish that elevates any bathroom design by removing the visual interruption of a traditional metal drain cover.

  • “Invisible” Drain Design: Accepts a piece of your surrounding floor tile to create a continuous, uninterrupted floor surface.
  • Perimeter Drainage: Water flows efficiently down the subtle gap between the tile insert and the outer frame.
  • Solid Plate Construction: CNC-milled from highly durable 6061-T6 aircraft-grade aluminum (polished finishes feature solid brass).
  • Screw-less Installation: The grate tray drops cleanly into the carrier for a flush fit with zero visible mounting hardware.
  • Customizable: You supply the tile insert, ensuring a 100% perfect match to your specific shower design.
  • Premium Frame Finishes: The subtle visible metal edge is available in matching finishes including Matte Black, Brushed Gold, Polished Chrome, Graphite Gray, and Champagne Bronze.

Installing the Tile-In Grate requires precision tile cutting to ensure the insert matches the surrounding layout perfectly.

1.Verify Assembly Compatibility:Requires a compatible drain body.

Confirm your shower pan utilizes a FloFX Universal or Traditional Drain Body. For third-party bond flanges (like Schluter or Profilitec), you must use the FloFX FFX Grate Install Kit.

2.Set the Grate Carrier:

Install the FloFX grate carrier into the drain body, ensuring it sits perfectly flush with the anticipated final height of your tile and thinset.

3.Insert the Temporary Install Plate:Crucial for protecting the final grate.

Place the included plastic temporary install plate into the carrier. This allows you to install your floor tile and apply grout without scratching or clogging the final grate tray.

4.Prepare the Tile Insert:Requires precision cutting.

Cut a piece of your floor tile to fit precisely inside the recess of the Tile-In Grate tray. Use a high-quality polyurethane adhesive (like Sikaflex) to bond the cut tile into the tray. Do not use thinset.

5.Drop in the Tile-In Grate:

Once the adhesive in the tray is cured and the shower floor is clean, remove the temporary install plate and simply drop the completed Tile-In grate into the carrier for a permanent fit.

Specification Detail
Dimensions 3-7/8″ x 3-7/8″ (Fits 4″ x 4″ layouts)
Material Base 6061-T6 Aluminum / Solid Brass (Polished only)
Manufacturing CNC-Milled Solid Plate
Fastening Screw-less Drop-in
System Compatibility FloFX Universal & Traditional Drain Bodies
Adhesive Requirement Polyurethane adhesive required for tile insert (Thinset not recommended)
Certifications ICC PMG1680
