QuickDrain ProLine Linear Drain Body

TILE PRO RATING: GoodBetterBest

18 Gauge 316L Marine Grade Stainless Steel Drain Body

$519.95$672.42

Item No.: PLD30-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 30-32

Item No.: PLD33-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 33-35

Item No.: PLD36-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 36-38

Item No.: PLD40-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 40-42

Item No.: PLD44-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 44-46

Item No.: PLD48-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 48-50

Item No.: PLD52-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 52-54

Item No.: PLD57-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 57-59

Item No.: PLD63-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 63-65

Item No.: PLD68-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 68-70

Item No.: PLD27.5-N

attribute_pa_outlet-type: offset-outlet

attribute_pa_body-dimension: 27-5-29-5

Item No.: PLD26-N

attribute_pa_outlet-type: center-outlet

attribute_pa_body-dimension: 26-28

[yith_wcwl_add_to_wishlist]

The QuickDrain ProLine Linear Drain Body is an 18-gauge, 316L marine-grade stainless-steel linear drain with a fully sloped trough and adjustable length/height, engineered for commercial, healthcare, hospitality, and upscale residential showers. It ships complete with a topical liquid waterproofing kit (hot-mop and CPE/PVC liner options sold separately) and supports multiple waste-outlet configurations—center, offset, side, and commercial—so you can match any plumbing layout. Decorative grate finishes like Michael Graves Cosmo and Stream elevate your design without sacrificing performance.

Overview

The QuickDrain ProLine Linear Drain Body delivers exceptional corrosion resistance and hygienic performance thanks to its 18-gauge, 316L marine-grade stainless-steel construction  . Its internally sloped trough prevents standing water and debris buildup, virtually eliminating hard-water deposits  . Every drain ships with a topical liquid waterproofing assembly kit; hot-mop and CPE/PVC liner accessories are available separately  . View full specs or order yours at Tile Pro Depot’s product page  .

Key Features

  • Fully Sloped Trough: Ensures no stagnant water, keeping your shower pan clean and dry  .

  • Adjustable Length & Height: Accommodates 28″–72″ stock lengths (extensions up to 100″) and tile thicknesses via height spacers  .

  • Multiple Outlet Options: Center, offset, side, and commercial outlets for precise plumbing placement  .

  • High Flow Capacity: Up to 12 GPM with curb or 5 GPM without curb—limited only by your plumbing  .

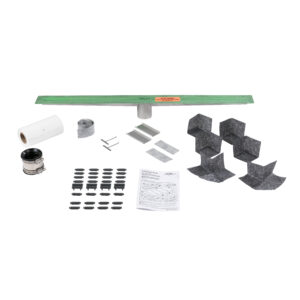

  • Complete Installation Kit: Includes transition tape, reinforcement fabric, cover removal keys, spacers, extensions, and corner connectors  .

  • Decorative Covers: Compatible with QuickDrain’s Michael Graves Cosmo, Stream, and other design-forward grates  .

Specifications

Attribute

Specification

Material

18-gauge, 316L marine-grade stainless steel

Lengths

28″–72″ stock; customizable up to 100″

Width

3″ channel

Outlet Size

2″ coupling

Flow Rate

12 GPM (with curb), 5 GPM (across entry)

Waterproofing

Topical liquid kit included; hot-mop/CPE/PVC optional

Typical Uses

Healthcare, hospitality, residential, ADA-compliant design

Installation & Waterproofing

Install per ANSI A118.10 guidelines: adhere the supplied transition tape ¼″–⅜″ above the stainless-steel flange before applying liquid membrane. For hot-mop or CPE/PVC applications, pair with a clamp-collar base (sold separately) and liner system  .

Benefits & Applications

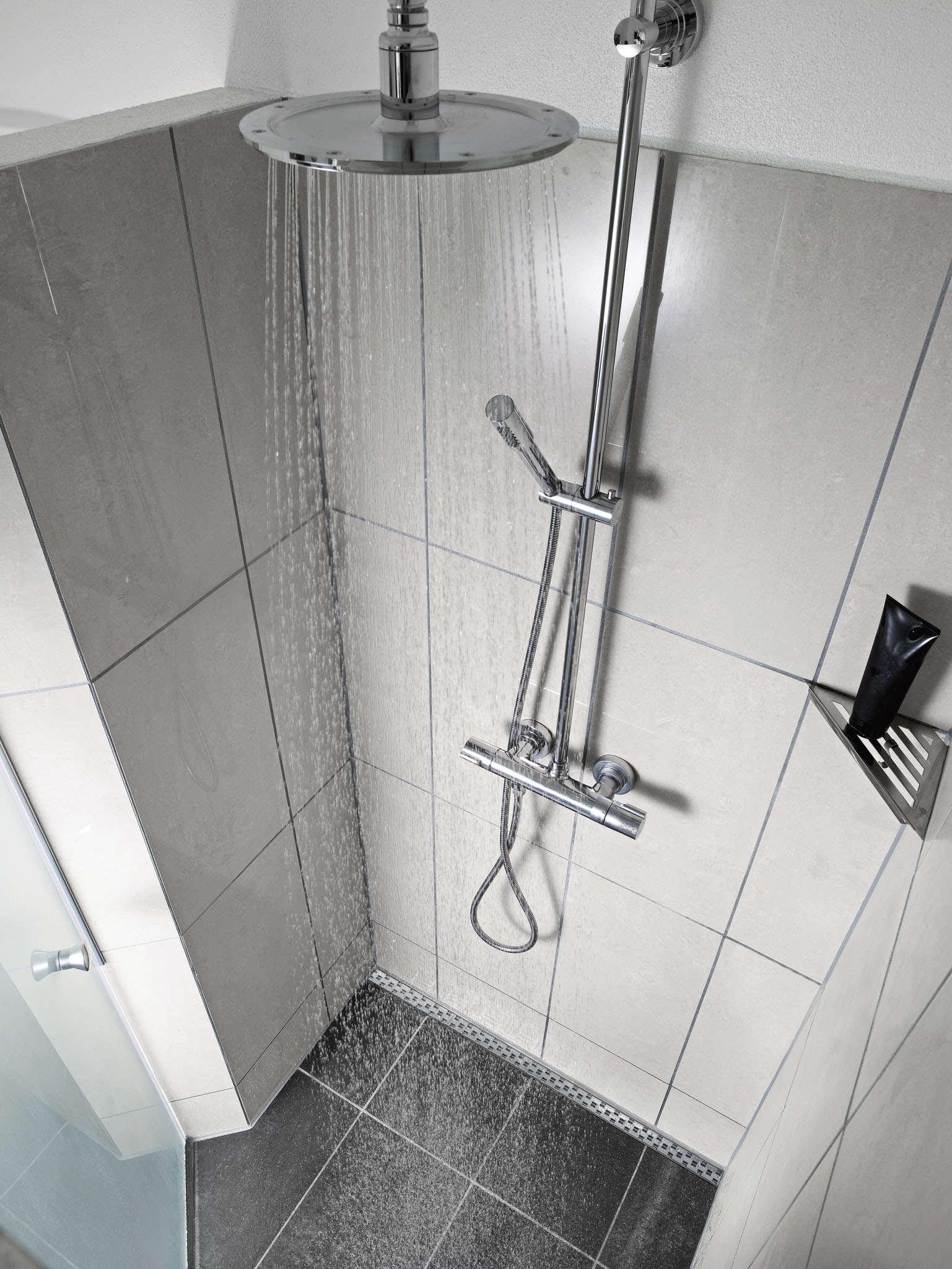

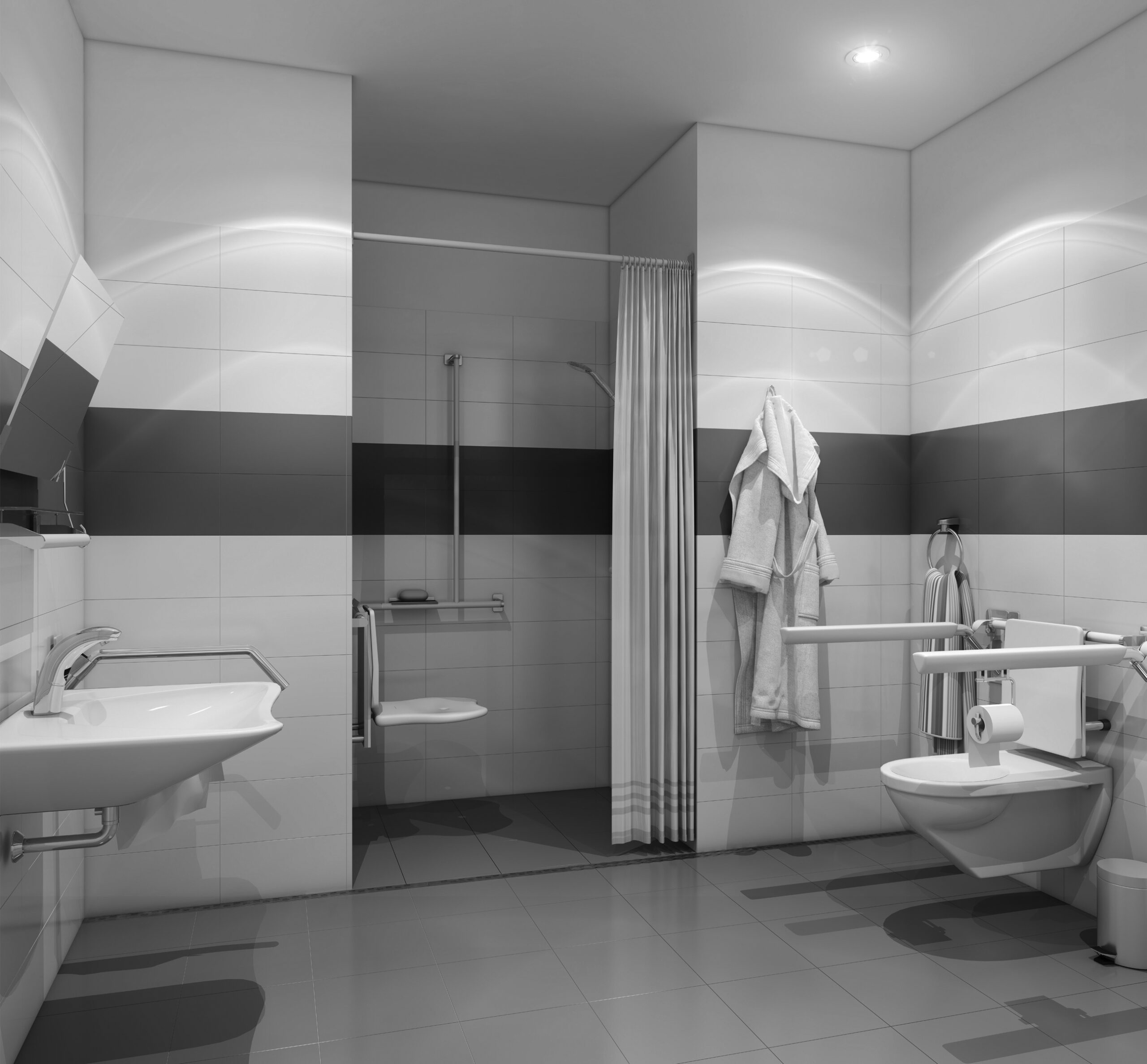

By specifying the QuickDrain ProLine Linear Drain Body, you ensure long-term durability in wet environments and a sleek, continuous-line aesthetic. Its marine-grade stainless steel and high-flow design make it ideal for hospitals, hotels, and luxury residences seeking both performance and style  .


External Resources



18 Gauge 316L Marine Grade Stainless Steel Drain Body

PROLINE DRAIN BODY DIMENSIONS

MODEL A B C D
PLD26-N 26 13 13 28
PLD27.5-N 27.5 13.75 13.75 29.5
PLD30-N 30 12 18 32
PLD33-N 33 16.5 16.5 35
PLD36-N 36 15 21 38
PLD40-N 40 17 23 42
PLD44-N 44 19 25 46
PLD46-N 46 23 23 48
PLD48-N 48 21 27 50
PLD52-N 52 23 29 54
PLD57-N 57 25.5 31.5 59
PLD63-N 63 31.5 31.5 65
PLD68-N 68 34 34 70



Key Product Features

  • 18-gauge 316 L stainless steel drain body for maximum corrosion resistance.

  • Fully sloped trough prevents stagnant water and debris.

  • Adjustable lengths 26″ – 72″ with field-trimmable extensions; custom up to 100″.

  • Stackable height spacers align grate with any tile thickness.

  • Multiple outlet configurations (center, offset) fit challenging plumbing layouts.

  • High-flow 12 GPM/5 GPM capacity through 2″ outlet.

  • ADA-ready, UPC & IPC compliant for curbless access.

  • Complete install kit—transition tape, reinforcement fabric, corners, spacers, extensions, keys.

Upgrade any bath—from luxury master suite to busy hotel—into a zero-entry spa. QuickDrain ProLine’s slim stainless silhouette practically disappears under large-format tile while delivering industry-leading 12 GPM drainage. Architects love its ADA compliance; installers love the one-slope pan and inclusive waterproofing kit; owners love the upscale look and lifetime durability. Click Add to Cart and transform your next shower today.
